Version: 1

Upsert Records

  • Category​

    • Data
    • Upsert
    • Integration

  • Flow Icon​

Overview​

The Upsert Records component upserts Salesforce records using an External Id field.
It supports single records, collections, or JSON (serialized) data, and includes options to deduplicate input by external id and to enforce all-or-none transaction behavior.

Use this when you need a robust, flexible upsert in Flow without building separate branches for insert vs update.

info

Note: The standard flow update component does support checking for matching records, however this component removes duplicate keys from your list before upserting where the standard component does not.

Inputs​

You may provide one of the following payload inputs:

  1. inputCollection (Optional)
    A collection of SObjects to upsert.

  2. inputRecord (Optional)
    A single SObject to upsert.

  3. serializedRecordData (Optional)
    A JSON string representing either a single record or a collection of records.

    • Keys must be valid field API names for the target object.

Provide exactly one of inputCollection, inputRecord, or serializedRecordData.

Additional required/optional inputs:

  1. objectName (Required)
    The API name of the target object (e.g., Account, Opportunity, CustomObject__c).

  2. externalIdFieldName (Required)
    The API name of the External Id field to match on (e.g., External_Id__c).

    • If a matching record exists → update.
    • If not → insert.

  3. allOrNone (Optional, Boolean)
    If true, the entire operation must succeed; otherwise the transaction is rolled back.

  4. removeDuplicates (Optional, Boolean)
    If true, duplicate external ids in the input are removed before upsert, saving DML and avoiding errors.

Outputs​

  1. record
    The upserted SObject when a single record was provided.

  2. records
    The upserted SObjects when a collection or serialized collection was provided.

Behavior​

  • Performs upsert by External Id on the object specified by objectName.
  • Accepts SObject(s) directly or via JSON (serializedRecordData).
  • Optionally deduplicates by external id (removeDuplicates = true).
  • Honors all-or-none semantics when requested.

Examples​

A) Upsert a single Account by External Id​

Inputs

  • inputRecord: Account SObject with fields (including External_Id__c)
  • objectName: Account
  • externalIdFieldName: External_Id__c
  • allOrNone: true

Output

  • record: the upserted Account

B) Upsert a JSON array of Opportunities​

Inputs

  • serializedRecordData:
  [
    {"Name":"FY25 Renewal - Acme","StageName":"Prospecting","CloseDate":"2025-08-31","External_Id__c":"OPP-1001"},
    {"Name":"FY25 Expansion - Globex","StageName":"Qualification","CloseDate":"2025-09-15","External_Id__c":"OPP-1002"}]

  • objectName: Opportunity

  • externalIdFieldName: External_Id__c

  • removeDuplicates: true

Output

  • records: the upserted Opportunities

Best Practices​

  • External Id discipline: Ensure the externalIdFieldName is populated in your input for deterministic upserts.

  • Validate JSON: When using serializedRecordData, confirm keys are valid field API names.

  • Choose one input source: Provide only one of inputCollection, inputRecord, or serializedRecordData.

  • Use deduplication: Set removeDuplicates = true when payloads may contain repeated external ids.

  • Transactions: Use allOrNone = true when you require atomicity; otherwise leave it false for partial success.

Troubleshooting​

  • “Required field missing” → Confirm objectName and externalIdFieldName are provided.

  • No records upserted → Ensure your payload is supplied via exactly one input and that External Id values are present.

  • Field API errors → Align JSON keys / SObject fields with the target object’s schema.

  • Duplicate value errors → Enable removeDuplicates to collapse repeated external ids within the input.

Example Scenario – Syncing External CRM Accounts​

Scenario Overview:

A Salesforce org integrates with an external CRM that maintains account records with unique external identifiers. When syncing data, Salesforce needs to update existing accounts if they already exist (matched by External Id) or insert new accounts if they don’t. The integration may also send multiple records in a single payload.

Implementation with Upsert Records Component:

  1. Flow Setup for Account Sync:
  • Create a Salesforce flow triggered when account data is received from the external CRM (e.g., via an HTTP callout or middleware integration).
  1. Adding Upsert Records Component:
  • Incorporate the Upsert Records component into the flow to handle both insert and update operations without branching logic.

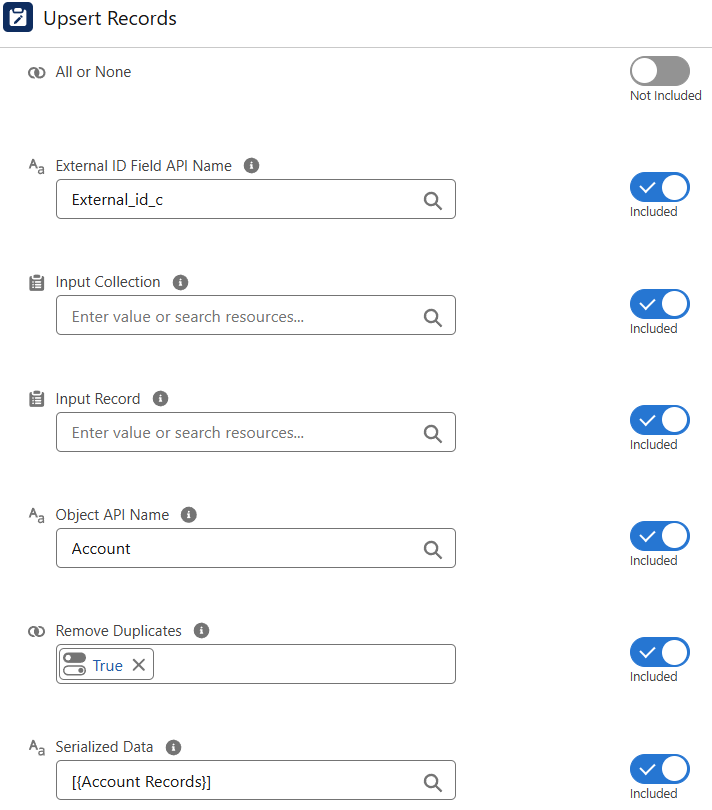

  1. Configuring Input:

  • serializedRecordData is set to the JSON array of account records received from the CRM.

  • objectName is set to Account.

  • externalIdFieldName is set to the API name of the External Id field, such as External_Id__c.

  • removeDuplicates = true to eliminate duplicate external ids in the payload.

  • allOrNone = false to allow partial success if some records fail.

  1. Executing Upsert:
    The component parses the JSON, deduplicates by external id, and performs upsert operations. Existing accounts are updated; new accounts are inserted.

  2. Utilizing Results:
    The records output contains the upserted Account SObjects. Flow can then log results, send notifications, or trigger downstream processes based on the outcome.
