Start Transaction

  • Category​

    • Orchestration
    • Integration
    • Transactions

  • Flow Icon​

Overview​

The Start Transaction component begins a Plinqx transaction from Flow.
Use it to open a transaction context for an integration or process step, optionally describing the HTTP request you intend to make (method, URI, body) and the related Salesforce record.

Once started, downstream steps (Flows/Apex) can reference the same transaction to correlate activity and outcomes.

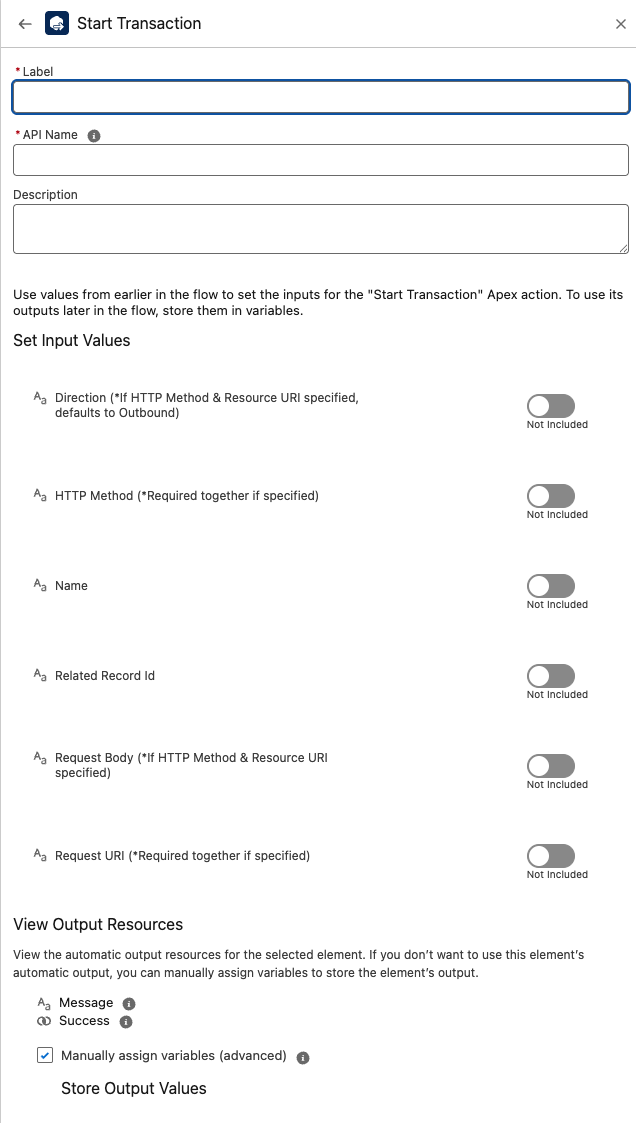

Inputs​

  1. name (Optional)
    A friendly name for the transaction/event.

    Not required if a transaction was already started earlier in the flow.

  2. direction (Optional)
    The transaction direction: e.g., Inbound or Outbound.

    • If you provide HTTP Method & Request URI, the direction defaults to Outbound.
    • Not required if the transaction is already started.

  3. relatedRecordId (Optional)
    The Salesforce record Id this transaction relates to (e.g., Case, Opportunity, custom object).
    Useful for linking logs, context, and follow-up actions.

  4. httpMethod (Optional; paired)
    The HTTP method for this transaction, e.g., GET, POST, PATCH, DELETE.

    Required together with Request URI when specified.

  5. requestUri (Optional; paired)
    The Request URI to be associated with the transaction.

    Required together with HTTP Method when specified.

  6. requestBody (Optional)
    The HTTP request body (typically JSON) to store with the transaction when relevant.

    Only applicable when you also supply an HTTP method & URI.

Outputs​

  1. success
    True when the transaction was started successfully; otherwise false.

  2. message
    A human-readable status or error message (e.g., validation issues, subscription messages, or general status).

Behavior​

  • Initializes a Plinqx transaction with the metadata you provide (name, direction, related record).
  • When HTTP Method and Request URI are supplied, the action records request metadata (and optionally the requestBody) and treats the direction as Outbound by default.
  • Designed to be the first step in a transaction flow; subsequent steps can update/complete the transaction.

Example — Start an Outbound API Transaction​

Inputs

  • name: Order Sync to ERP
  • relatedRecordId: 006xx00000ABC123 (Opportunity)
  • httpMethod: POST -requestUri: /erp/api/v1/orders
  • requestBody:
  {"orderNumber":"SO-10045","total":2500.00}

Outputs

  • success: true

  • message: Transaction started

Example — Start an Inbound Transaction Linked to a Case​

Inputs

  • name: Email Webhook Received

  • direction: Inbound

  • relatedRecordId: 500xx00000AAA111 (Case)

Outputs

  • success: true

  • message: Transaction started

Best Practices​

  • Pair HTTP fields: If you set httpMethod, also set requestUri (and vice versa).

  • Attach context: Always provide relatedRecordId when the transaction ties to a specific business record.

  • Name consistently: Use a clear, predictable name to make logs and monitoring easier.

  • Order of operations: Call Start Transaction before any step that should be correlated to the same transaction.

Troubleshooting​

  • success = false → Check message for validation details (e.g., missing paired fields, invalid record Id).

  • Direction not honored → If httpMethod and requestUri are set, direction defaults to Outbound; explicitly pass Inbound only when you’re not providing HTTP metadata.

  • No linkage → Provide relatedRecordId to ensure your transaction is visible alongside the relevant record.
