Using Formulas in Data Transformations (Mappings)

  • Category​

    • Data Transformation
    • Mappings
    • Utility
info

Available: Starter and Premium

Formula Builder UI​

Overview​

Formulas let you transform incoming values during field mappings without writing Apex.
You define a Formula, choose a Return Type, and (optionally) pick from built-in Functions. The output of the formula becomes the value that is written to the target field.

Typical uses:

  • Clean/standardise strings (trim, upper/lower, replace).
  • Conditional branching (map one of two values based on a condition).
  • Math on numeric inputs (rounding, addition, percentages).
  • Compose values (concatenate fields, build keys).
  • Safe defaults (fallbacks when inputs are blank).

Where to use​

In the Mapping editor, add an Action of type Formula on a field mapping.
The formula runs at write time for that field and its result is passed forward to the target.

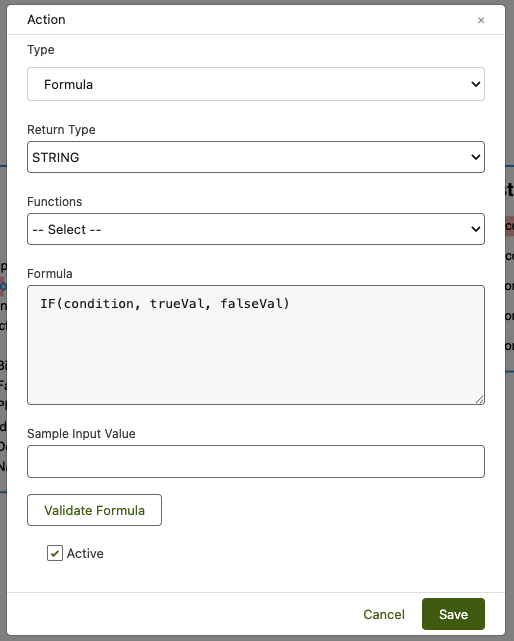

Action Dialog Fields​

  • Type
    Select Formula.

  • Return Type
    Choose the expected output type for the target field:

    • STRING · INTEGER (NUMBER) · BOOLEAN · DATE · DATETIME · DECIMAL · LONG · DATETIME · DOUBLE

  • Functions
    Picker of common helpers (auto-inserts the function template into the editor).

  • Formula
    Enter the expression. Example:

  IF(ISBLANK(STRING(value)), "Unknown", UPPER(STRING(value)))

  • Sample Input Value (optional)
    A quick way to test your formula with a sample value.

  • Validate Formula
    Compiles the expression and evaluates it against the sample input (when provided).

  • Active
    Toggle to enable/disable the action without removing it.

Supported Function Patterns​

info

Notes: The engine supports familiar Excel/Salesforce-style functions. Use the Functions picker to insert templates quickly.

Conditionals

  • IF(condition, trueVal, falseVal)

  • CASE(expr, when1, then1, when2, then2, default)

Text

  • TRIM(STRING(value)) · LOWER(STRING(value)) · UPPER(STRING(value))

  • CONCAT(a, b, ...)

  • LEFT(STRING(value), n) · RIGHT(STRING(value), n) · SUBSTRING(STRING(value), start, len)

  • REPLACE(STRING(value), target, replacement)

  • LEN(STRING(value)) · CONTAINS(STRING(value), fragment)

  • VALUE(STRING(value)) ← convert to number

Numbers

  • ROUND(DECIMAL(value), scale) · ABS(DECIMAL(value))

  • FLOOR(DECIMAL(value)) · CEILING(INTEGER(value))

  • Basic math operators: + - * / and parentheses ()

Dates

  • TODAY() · NOW()

  • DATE(year, month, day)

  • ADD_DAYS(DATE(value), n) · ADD_MONTHS(DATE(value), n)

  • FORMAT_DATE(DATE(value), "yyyy-MM-dd")

Booleans

  • AND(a, b, ...) · OR(a, b, ...) · NOT(a)

  • ISBLANK(STRING(value)) · ISNUMBER(STRING(value)) · ISDATE(STRING(value))

info

Notes: Exact availability may vary by version. Use Validate Formula to confirm.

Referencing Inputs​

  • In most mappings the engine provides the current input value as value.

    Example:

    IF(ISBLANK(STRING(value)), "N/A", TRIM(STRING(value)))

info

Notes: You transform (type cast) your input value (the value from source) to the data type by wrapping it in parentheses, for example:

  • STRING(value)
  • INTEGER(value)
  • BOOLEAN(value)
  • DECIMAL(value)
  • DATE(value)
  • DATETIME(value)

  • When your mapping step exposes multiple fields, use the field tokens offered by the editor (insert from the UI) and compose:

    CONCAT(AccountName, " - ", STRING(value))

Examples​

1) Normalise phone

REPLACE(REPLACE(REPLACE(STRING(value), " ", ""), "(", ""), ")", "")

2) Map stage to probability

CASE(UPPER(STRING(value)), "PROSPECTING", 0.1, "NEGOTIATION", 0.7, "CLOSED WON", 1.0, 0.0)

3) Friendly fallback

IF(ISBLANK(STRING(value)), "Unknown", input)

4) Build external key

CONCAT(UPPER(TRIM(STRING(value))), "-", RIGHT(YEAR(TODAY()), 2))

5) Clamp discount

MIN(ROUND(DECIMAL(value), 2), 0.5)

6) Date display

FORMAT_DATE(DATE(value), "yyyy-MM-dd")

Validation & Testing​

  1. Enter your expression.

  2. Provide a Sample Input Value (optional but recommended).

  3. Click Validate Formula.

    • You’ll see compile/runtime errors (e.g., unknown function, type mismatch).

    • Fix and re-validate until it passes.

info

Notes: Validation uses the same engine that runs during mappings.

Best Practices​

  • Match the Return Type to the target field (e.g., NUMBER for numeric fields).

  • Guard blanks with IF(ISBLANK(...), default, value).

  • Normalize inputs (e.g., TRIM, UPPER) to reduce downstream errors.

  • Keep formulas small and readable; split multiple transformations into separate actions if needed.

  • Test with real-world samples (long strings, special characters, nulls).

Troubleshooting​

  • “Unknown function …”
    Use the Functions picker to insert a supported template, or check spelling/casing.

  • Type mismatch (e.g., string → number)
    Convert explicitly with VALUE() or adjust Return Type.

  • Blank results
    Add guards with ISBLANK and defaults in IF.

  • Date format errors
    Use FORMAT_DATE() for display strings or ensure the return type is DATE/DATETIME when writing to date fields.

info

Notes:

  • Formula Actions run synchronously during mapping for the field they’re attached to.

  • They are executed before write operations, so the transformed value is what’s persisted.

  • The same engine powers Validate Formula and runtime execution.
